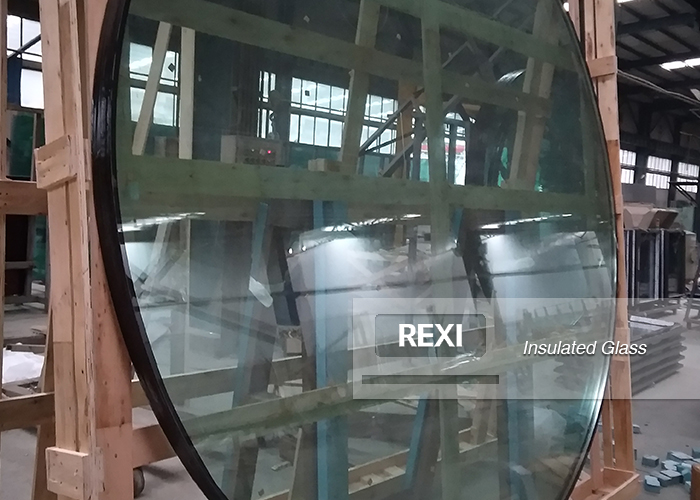

REXI Insulated Glass is made of two or more pieces of glass with effective support and evenly spaced and sealed at the periphery to form a dry gas space between the glass interlayers. The interlayer of the insulated glass is initially dry air, and other gases with a lower thermal conductivity than air are currently used. The minimum thickness of the gas interlayer of the insulating glass should not be less than 6mm, otherwise it will not function as thermal insulation. However, the thickness should not be too large, if it is too large to make the insulated glass too thick. In order to standardize the production of the frame, the gaps of the insulated glass are currently divided into 6, 9, and 12, 14, and 16 mm.

COMPOSITION:

Any type of insulated glass consists of the following components:

(1) The float glass constitute the insulated glass. These glasses can be ordinary laminated glass, solar control glass (including Low-E glass), and etc.

(2) Gas interlayers and gases. In the interlayer of the insulated glass, firstly to ensure the performance of the insulated glass, the interlayer gas must be dry, including dry air, argon or other special gases. Generally, depending on the requirements, the thickness of the insulated glass interlayer and the internal gas are also different.

(3) Edge sealing system. There are two types of recognized insulated glass edge sealing systems: one is the traditional cold edge sealing system (slot aluminum), and the other is a warm edge sealing system (composite strip type) represented by American Swiggle strip. Since the traditional aluminum trough insulated glass products have been used internationally and domestically for a long time, they have been recognized by many people, and the warm-side system has been promoted in China in April 1997, and the products have not been widely recognized. However, since this product has been improved on the basis of the conventional method, the heat insulating and sound insulating properties of the insulating glass are greatly improved, and thus it has been accepted more and more popular.

FEATURES:

(1)  Insulation

The thermal insulation properties of the insulating glass are mainly its thermal insulation of the gas interlayer, so that the temperature difference between the two sides is close to or even exceeds 10 °C. This is because the gas in the interlayer is in a closed space, the gas does not convect, thus, convective heat transfer and conduction heat transfer account for only a small proportion of the energy transfer of the hollow glass. This effect in turn varies with the wind speed of the glass surface and the radiation of the glass surface. Insulated glass is the use of gas interlayers with a large thermal resistance, especially the formation of an air interlayer that does not cause convection, so that the energy exchange between the indoor and outdoor is greatly reduced, and significant heat insulation effect can be obtained.

(2)  Heat preservation

Insulation of insulated glass means reducing indoor heat through its outdoor area during the winter, and the smaller the thermal resistance, the better the thermal insulation performance. If the glass is coated with a low-emission film, the radiation emissivity can be reduced to 0.1, and in winter, the heat radiated from the room will be reduced to provide better insulation. If the two inner surfaces of the insulated glass are respectively coated with a sunshade film and a low-radiation film, the hot sun is blocked in summer; in winter, the heat in the room is prevented from being lost, In winter, the temperature in the room is prevented from being lost, and the indoor warm winter and cool summer is achieved.

(3)  Anti-condensation & Reducing Cold Radiation

Inside the insulated glass, there is a desiccant that can absorb water molecules, and the gas is dry; when the temperature is lowered, condensation does not occur inside the insulated glass, and the dew point temperature of the outer surface of the glass also rises. This is the biggest difference between insulated glass and double glass.

APPLICATION：

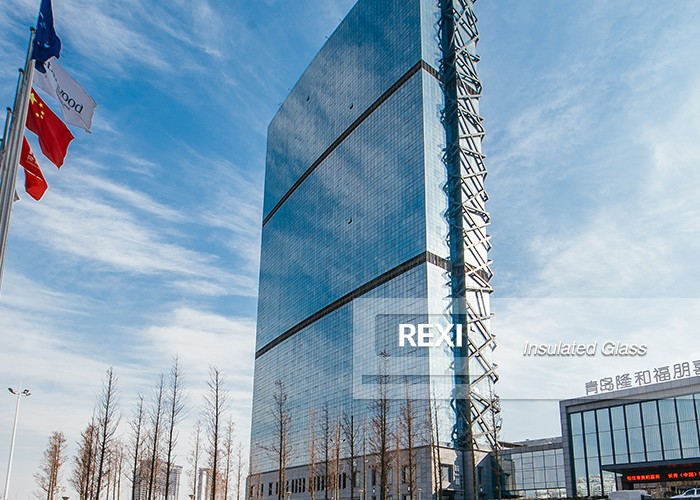

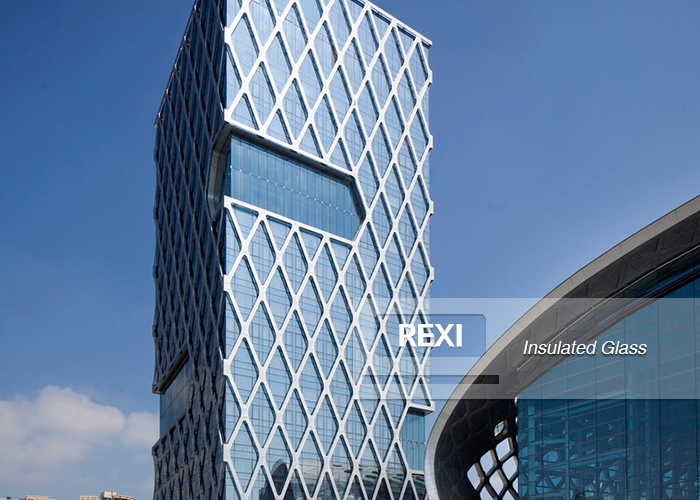

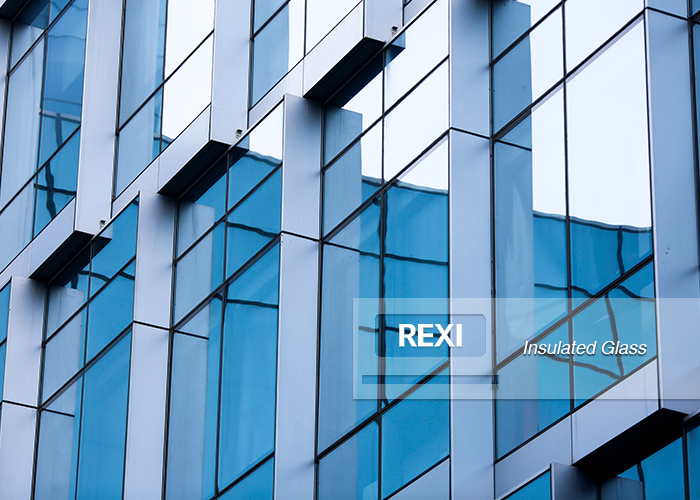

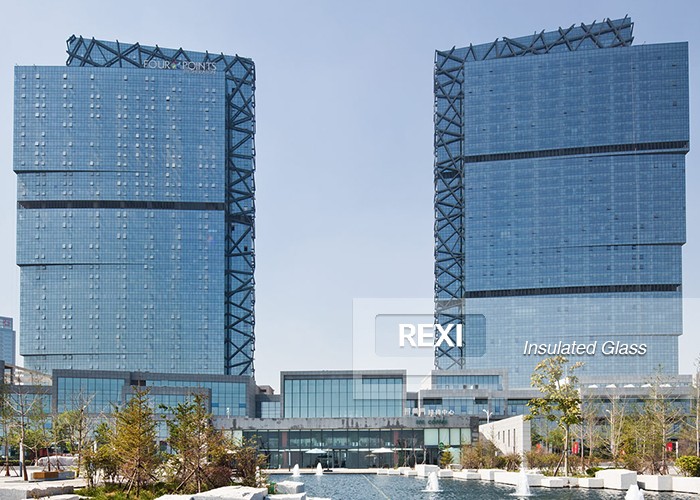

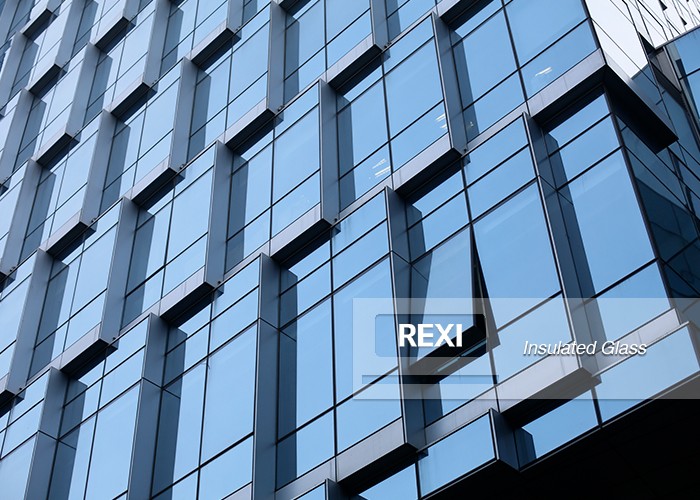

China Insulated glass is mainly used for exterior glass decoration: heating, air conditioning, noise blocking, condensation, and buildings that require no direct sunlight and special light sources. It is widely used in residential, hotel, hotel, office buildings, schools, hospitals, shops, etc. Not only that, but insulated glass can also be used for doors and windows on trains and cars, ships, freezer cabinets, etc. It is possible to reach the laboratory standard with vacuum double-layer tempered glass!

The unique structure of the insulated glass and the heat insulating effect of the hollow space layer effectively reduce the heat transfer coefficient and have excellent energy saving characteristics. Therefore, to extend the life of the insulated glass and improve the energy saving effect, China insulated glass manufacturers must ensure the high quality of the product, and also the insulated glass suppliers must provide the high-quality materials. Thus the insulated glass price will be different for the improvement of high-quality requirements.

STANDARDS:

REXI Glass comply with China GB11944-ccc; Europe EN1279-CE; America ASTM E2190-IGCC; AustraliaAS/NZS4666-CSI

SPECIFICATIONS:

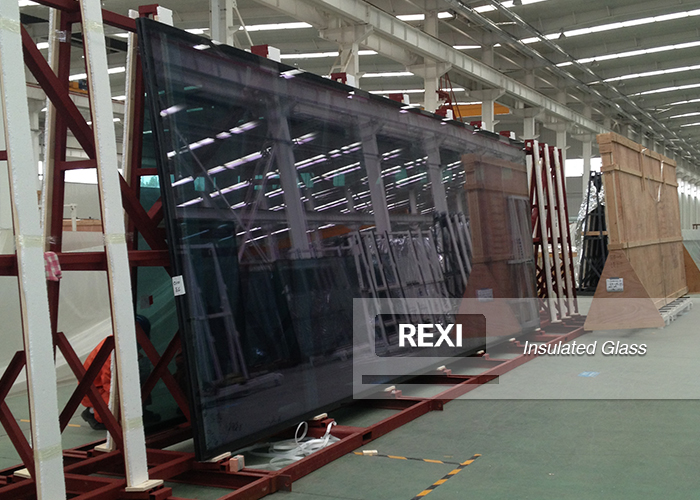

Max. Size: 12000*3300mm

Min.Size:300*300mm

Gas Filling: Dry air, Argon

Spacer Thickness: 6mm, 9mm, 12mm, 16mm, 19mm（1/4’’,11/32’’,1/2’’,9/16’’,19/32’’,5/8’’）etc.

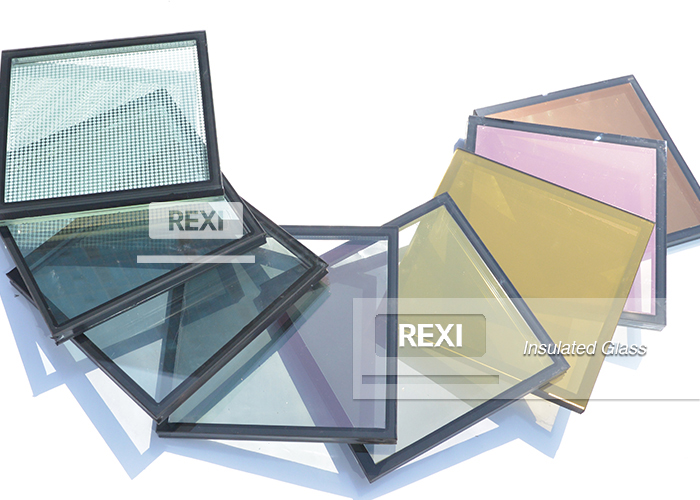

Glass Option: Clear Glass, Low Iron Glass, Tinted Glass, Ceramic Fritted Glass

Low-E Option: Single silver, Double silver, Triple silver

Delivery Time:     In Three weeks after order confirmation.
